[GB] Seal80 TKL - Plate
Here we go. Seal 80, the sequel to Seal 100, is coming.
Note
- Default Kit does not come with a Plate (Plateless Build)
- Purchase a plate if you wish to have a plate
- The aluminium plate is universal.
- ABS 4mm and PEI have ISO and ANSI versions. Once purchased, it will default to ANSI Layout. If you need it to be changed to ISO, please specify in the Note section when you check out.
Specs:
- TKL Layout, 7U
- Mount: Top Mount + 'Smoke' Buffer + Blocker
- Top Case Material: Aluminium or PC
- Buffer Material: ABS & TPU, Copper
- PVC Bottom Cushion
- Weight Options: Brass, Copper, Stainless Steel

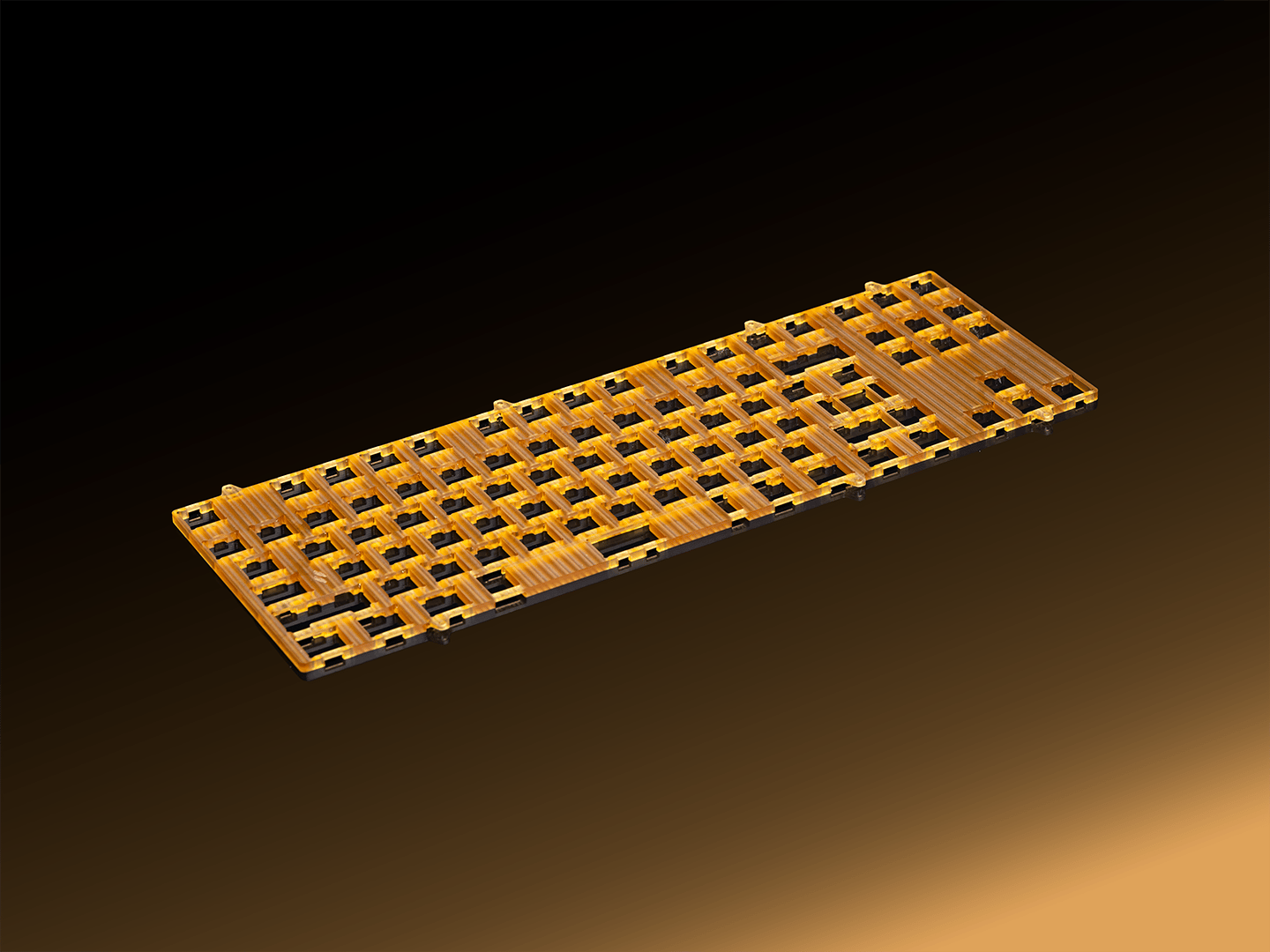

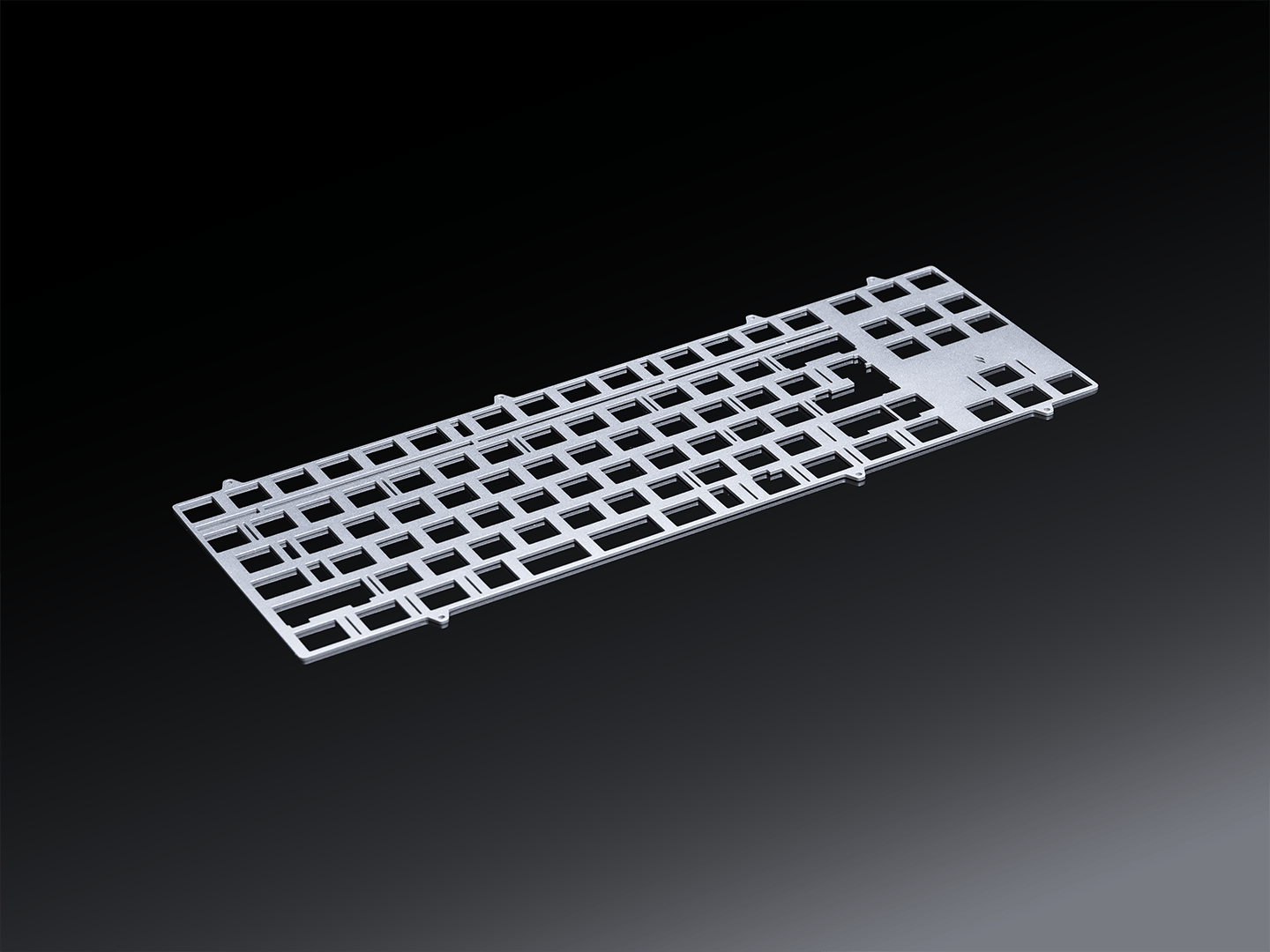

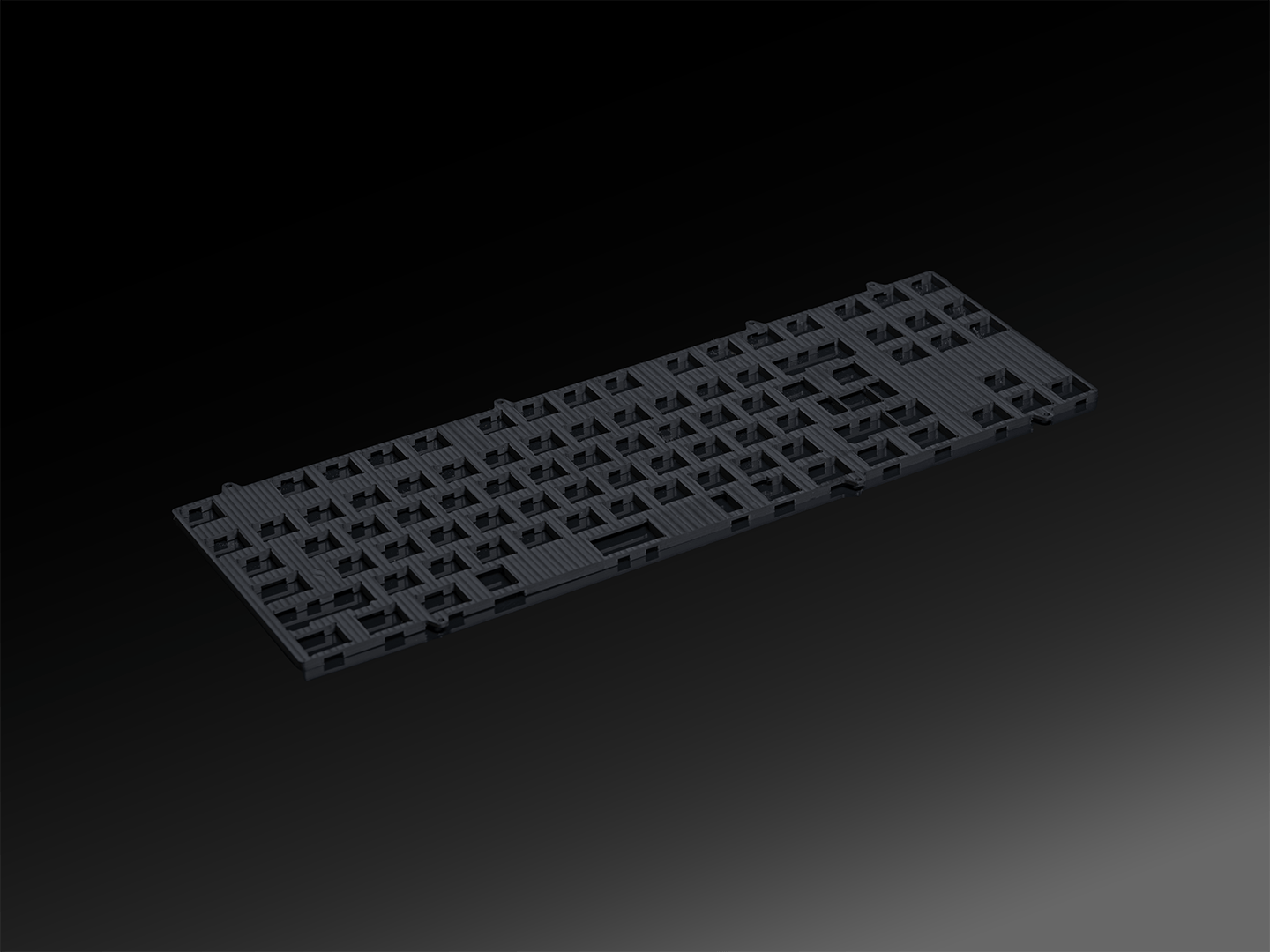

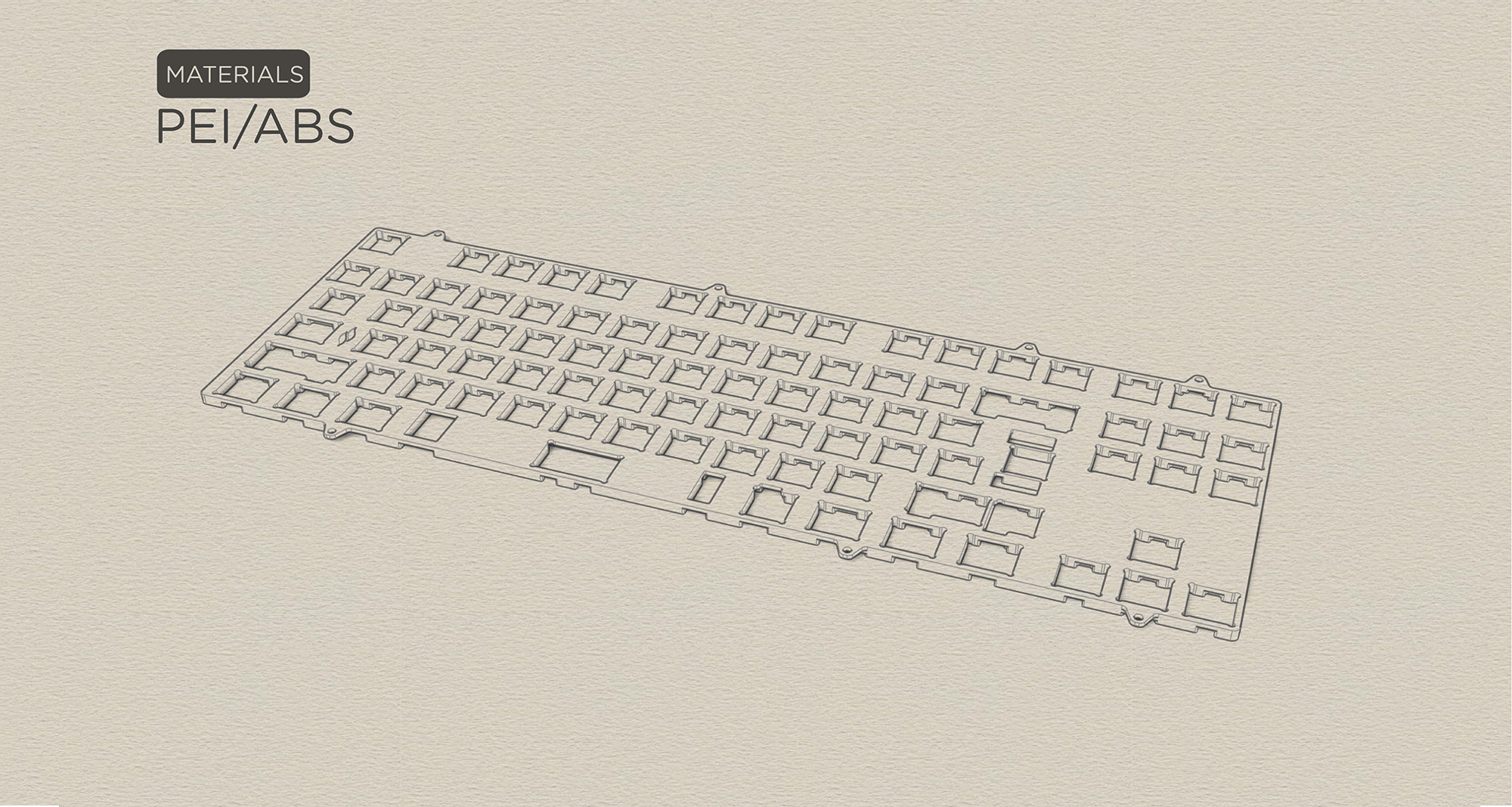

- Plate Options: Aluminum Black (1.5mm), Aluminum Silver (1.5mm), PEI (4mm), PC ABS Black (4mm)
PCB: MX, Cherry MX + Alps SKCM/SKCL + SMK Soldering, Alps SKCP + Omron B3G + NMB Hi-Tek 725 Soldering, Topre EC, VIAL Supported, Hiney87 Compatible
- Typing Angle: 9°
- Front Height: 16.5mm, EKH 21.8mm
- Dimensions: 356.2 x 137.2 x 38.5mm
- Weight: Approx 2.5-2.8kg
Package Content:
- Aluminium Case
- Badge x1
- Strip x1
- Aluminium Badge (Inner) x1
- Carry Pack x1
- No Plate (Default)
- Cherry MX Solder PCB (Default)
- 70A Cushion x7
- 90A Cushion x7
- 98A Cushion x7
- Buffer x2
- DB + JST Cable x2
- Rubber Feet
Timeline:
- Groupbuy: Mar 22nd - April 22nd 2026
- Delivery to Vendor: Q4 2026
Vendors:
- US: DiviniKey
- CA: Unikeys
- OCE: Toro Studio
- EU: MonacoKeys
- JP: Nekoyui
- KR: GeonWorks
- SG: iLumkb
- TL: Aiglatson Studio
- UK: Prototypist
- VN: MOKB
- ROW: Zfrontier
