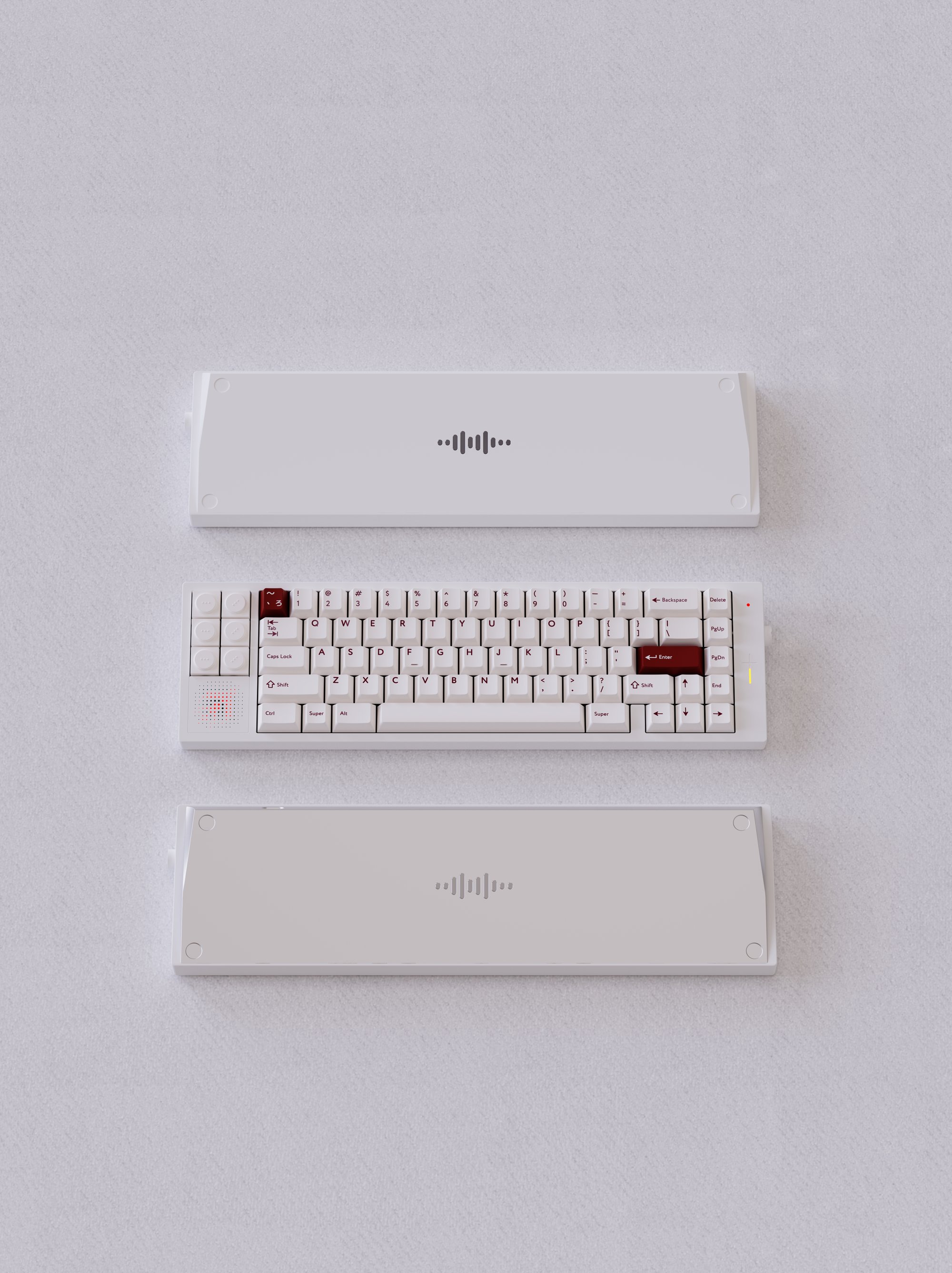

[GB] Sonic 170 V2 - Bottom case

After the success of V1. Sonic170 is back and better than ever.

Specs
• Layout: 10% Macro + 65%
• Mounting: Leaf-spring gasket
• Typing Angle: 7°
• Front Height: 17.7mm
• EKH: 22.4mm
• Dimensions: 371 × 107.8 × 30.7mm
• Material: Aluminum / Brass
• Weight: 1.6kg (kit) / approx. 2.1kg built

PCB & Layout
• Main PCB: 1.6mm hot-swap (fixed layout) or 1.6mm soldered (multi-layout)
• Hot-swap: Supports fixed layout and stepped Caps Lock
• Solder: Supports 7U spacebar and ISO enter
• Macro Section: Hot-swap only for easy lighting module installation

Groupbuy:
• Groupbuy: April 9th - April 31st 2026
• Delivery: Q4 2026

Vendors:
• US and ROW: Clickclack
• UK and EU: Prototypist
• OCE: Toro Studio
• SEA: ktechs
• CA: Unikeys

Package content:
Shell (6063 aluminium top and bottom/brass weight/brass mid-frame)
• Wired 1.6mm PCB (QMK with VIA support)
• Plate (colour-matched aluminium; e-white version with silver plate)
• Foam kit (3mm Poron case foam / 0.5mm IXPE switch pad)
• Gasket (Three different hardness levels)
• Screws and feet
• Manual
• Full PCBA set (Type-C daughterboard / adapter / knob / light / macro / magnetic connector boards)
• Keyboard case & Packaging box
